2004 Teschner SC7000 EuroPro
Bikes | 1986 Nishiki Intl | 1999 Fuji Team | 1994 Steelman | 1998 Turner | 1990 Steelman | 2000 Hunter Cross | Teschner | Scott Plasma Cervelo R3 | SRAM Red | Home

Road Bike | Triathlon Set up

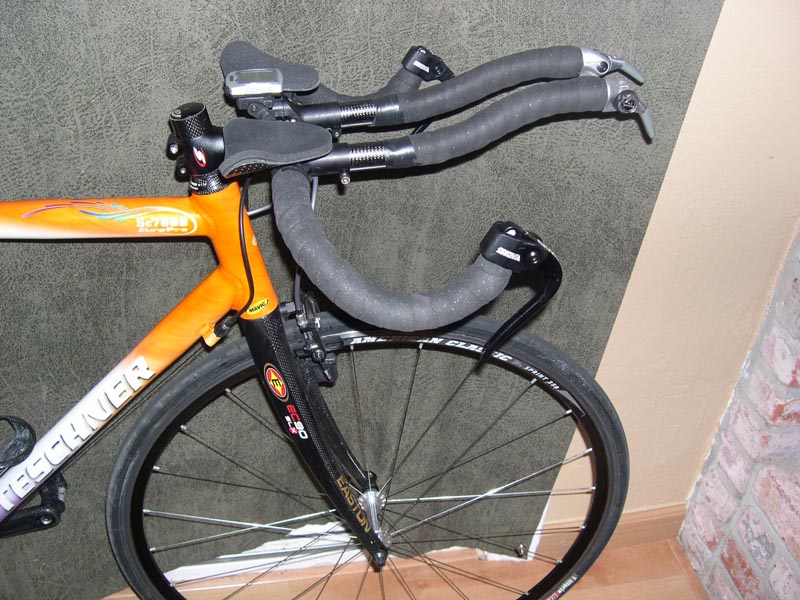

Hed bars feature cable routing slot; pads flip up for climbing



Upside down road bars, cut and drilled. The best descending bars ever!



Got a shorter stem (135 gram, SuperGo cheapie), 80CM. Cut aerobars a few CM and moved the seat even more forward.

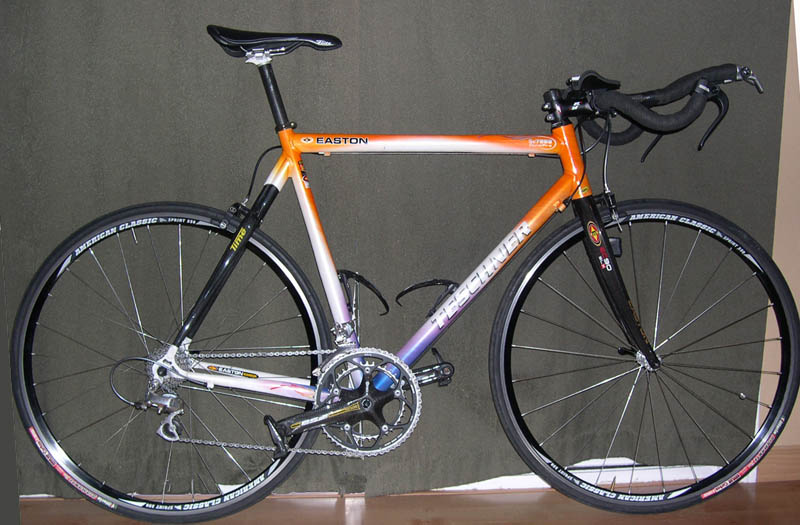

Superlight tri-mode. 15lbs 15oz. 16 1/2 inches from tip of seat to center of stem. Reduced from 16 3/4.

Reviews:

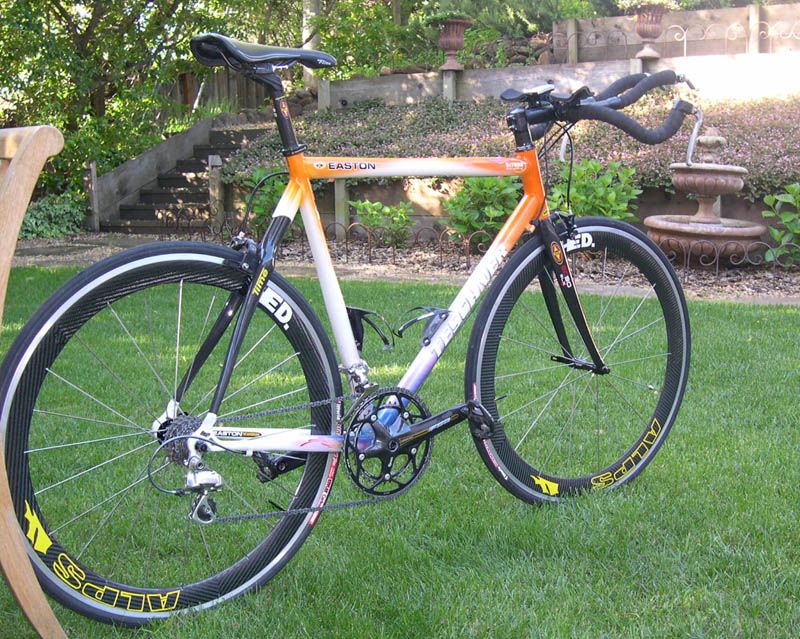

Hed Alps Wheels.
Originally purchased the Alps front and H3 rear wheel. The H3 rear was not that impressive. Though the ride was smooth, it didn't seem to be dramatically faster though it is stiffer. Much heavier at 1050 grams. The front Alps, though is a amazing. Riding the front Alps and standard spoked American Classics 1350 rear, the bike accelerated much more quickly at speeds above 20 mph. Was able to drop other riders, going from 39 to 44 mph. Yes, they are clinchers, so they are heavier, but the aluminum braking surface is very secure and modulates well. The wheels seem laterally stiffer than the American Classics and appear bullet proof. Only problem-slightly out of true on delivery.
These wheels are essentially the same design as the Zipp 404 but hundreds of $ cheaper. The only downside to these wheels is the rims are deep and it's hard to mount a tire; tire iron is required. This means use heavier duty tubes to avoid pinching when installing the tube. Though 1/2 pound heavier than my American Classics, 1350, they are front: 675, rear: 900, total weight of 1575 grams. This is actually pretty reasonable compared to Mavic Ksyrium SLs @ 1500 grams, Heliums @ 1635 gramsKsyriums @ 1835 grams.



Nimble Crosswind Wheels
Purchased these in early 2000 for $1400. These are amazing wheels as advertised; they accelerate effortlessly. However the tubulars are a chore to deal with; got a flat in the rain on these and my hands were too cold to work the tire off/on. Ended up walking 2 miles and getting a ride home. Also, carbon rim doesn't brake as well as aluminum. Adding a computer magnet creates a rattle that can't be quited. I only rode these 6 times in 5 years. Now trying to sell them. Weight: 710 front, 960, rear; total: 1670 grams.

Hed Flip-Light Extensions
Hed has some issues with keeping their web site up to date. These are essentially the bars that Lance rode in last year's tour. The "S" bend is different than other bars; the sloping section allows for more power in the bars by enabling you to more easily pull from that position. It does work. The clamping mechanism is quite powerful as well; these are as stable as the benchmark Syntace aerobars. These came with more triangular pads which flip up for climbing. Advertised weight was 280 grams, but they came in at 365 grams! This being said, it's hard to believe they could be made any lighter. Because of the s-bend, the bar end shifters stick out a little further than syntaces (which point up, not out), so shifting is a little more difficult. Pads could be thicker.

Vittoria Tires
The Vittoria Diamante Pro and Pro Light are very impressive tires. The Pro Light is 178 grams each. Riding with superlight tubes, got two flats in two rides. Switched to heavier tubes and have got no flats.

The Diamante Pro is a fantastic tire. Very supple ride. No flats thus far. 210 grams each. 150 psi max. These are the best tires I've used.







Zero Gravity Brakes
These are amazing brakes. Extremely light; less than 200 grams for the pair! Stopping power is excellent. Slightly fragile, of course, but be careful with wrenching too hard on the titanium bolts; they can snap if too much torque is applied. Very happy except front brake doesn't have enough tension, so brake lever is "loose" which creates vibration on bumpy roads. Trying to figure out best remedy. Otherwise, very nice.

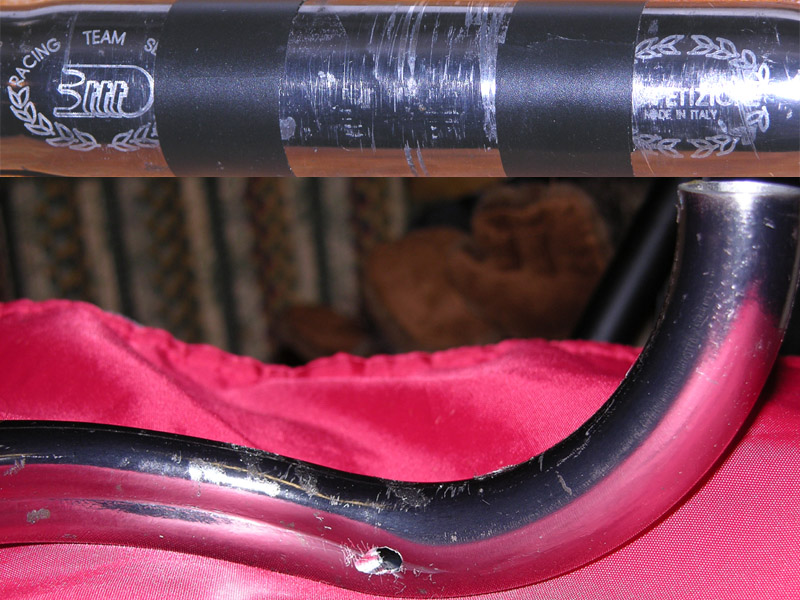

TTT Handlebars
These are fantastic! They are road bars, turned upside down. Fantastic climbing/sprinting.
225 grams. Anyone need some Syntace bullhorns?

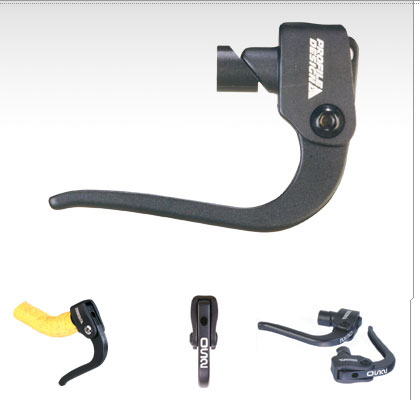

Profile Quickstop 2 aero brakes

Profile Quickstop 2 brakes are awesome. 187 grams (very light). Feature a return spring which helps overcome drag with the cow horns and Zero Gravity brakes. Highly recommended and only about $45.









Vittoria Open Courso CX
Very nice tires. Supple ride, but hard to put on. 235 grams each. Got blue sidewalls. 290 tpi
Installed 6/17/05.




Build and Weights:

Triathlon Build 16 lb 7 oz
Component Brand Actual Ounce
Frame Teschner SC7000 EuroPro 1275 2.811
sti bosses Generic 5 0.011
cable guide Generic 5 0.011
seat collar Generic 20 0.044
rear brake bolt Generic 5 0.011
Headset Campy integrated 83 0.183
Fork EC90slx 300 0.661
headset spacers Carbon (save 5 grms) 15 0.033
Brakes Zero Gravity 185 0.408
Brake Levers dia compe 180 0.397
Shifters Dura Ace 9 spd - Bar Ends 178 0.392
Crank FSA Carbon Superlight 175 515 1.135
Crankbolts FSA   30 0.066
Bottom Bracket Dura Ace 9spd 175 0.386
Front Der ring Dura Ace   30 0.066
Front Derailleur Dura Ace   75 0.165
Cassette Dura Ace 9spd 154 0.340
Rear Derailleur Dura Ace 9spd 195 0.430
Chain Dura Ace 285 0.628
Pedals Look Keo Ti 195 0.430
Stem Syntace - 100 105 0.231
Stem Cap Easton   10 0.022
Handlebar   Cowhorn 215 0.474
Aero bar Hed Aero-Clip light S-bend   365 0.805
Handlebar Tape Deda Tape 20 0.044
Cables Aztec, Diacomp 75 0.165
Housing Aztec, Diacomp 100 0.220
Seatpost Easton EC90 145 0.320
Saddle Selle Flite Carbonio 175 0.386
Tires(f/r) Vittoria Diamonte Pro  420 0.926
Tubes(f/r) Continental long valve 200 0.441
Wheels Hed Alps-front 675 1.488
Wheels Hed Alps-rear 900 1.984
Rim Tape Velox cloth 10 0.022
Cages (2) IRD 32 0.071
Skewers Hed 95 0.209
  Total 7447 16.418
  ratio 0.002205 16.067
